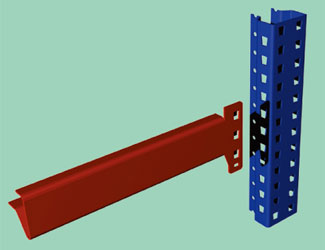

This rack is a system of medium weight beams and uprights made for medium duty applications. This boltless rack is easy to assemble by quickly inserting beams into the upright frame. The beam can be adjusted every 2” in distance for medium loading where a longer beam is desired. This rack will commonly with 650 to 1800 pounds/level. You can use steel, fiberboard or wood for shelving.

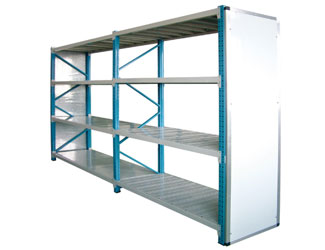

With Hardy wide span rack you can quickly assemble this tooless, versatile, medium capacity system.
Wide Span |
Wide span rack systems are custom-made to order give us a call with your configuration or your needs and we will build the right solution for your needs. |
Description |
Wt / lbs Each |
Ga. |
Load / lbs |
Color |
Pallet Support 36" 16 ga | 5 | 16 | - | Zinc Plated |
Pallet Support 42" 16 ga | 5.3 | 16 | - | Zinc Plated |
Pallet Support 48" 16 ga | 6.59 | 16 | - | Zinc Plated |
Pallet Support 42" 14 ga | 7.3 | 14 | - | Zinc Plated |
Safety Clip with Barrel End | 0.04 | - | Zinc Plated |
|
3 Rivet End Connector with Safety Clip | 1.01 | - | Unpainted |
|
Row Spacer 8" 12 ga |
1.3 | 12 | - | Unpainted |
Row Spacer 10" 12 ga |
1.7 | 12 | - | Unpainted |
Row Spacer 12" 12 ga |
2.1 | 12 | - | Unpainted |
Anchors 1/2" x 4" | 0.7 | - | Zinc Plated |
Phone: |
Hardy Storage Systems sells by container loads only.
Download an order form here and email or fax it to us.
